1. 120pcs material stations -- can meet the mounting requirements of various materials and various specifications and packages of the product.
1) 120pcs 8mm material stations support NXT electric feeder, 12mm, 16mm, 24mm, 32mm and 44mm NXT electric feeder,,vibration feeder and IC trays.
2)NXT electric platform specification: 8mm-44mm NXT electric feeder, electric feeder stable feeding, high precision, long service life.

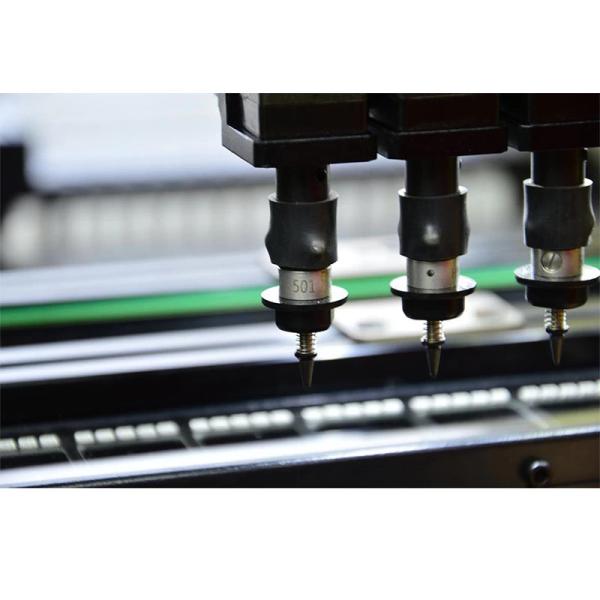

2. 8 groups of independent mounting heads - 8 groups of mounting heads are distributed with different nozzles, which are suitable for the mounting requirements of products with more specifications.
1) 8 groups of mounting heads can realize the double arms and four heads pick simultaneously,pick up the material at same time, The picking efficiency is improved greatly.
2) The mounting head can rise and fall independently, rotate from 0 to 360 degrees, and mount up to 20 mm components.
3) The z-axis can rise and fall independently according to the thickness of the components,For the resistance and capacitance components, the mounting head can realize the fly visual identification, High components can be mounted at reduced speed.
4) It can meet the requirements of different sizes of components, different specifications and different packages, achieve diversity, one-time placement.
3.The comprehensive efficiency is 20000pcs/h, and the maximum efficiency is 26000pcs/h.
1) Mounting speed of various components(resistance,capacitance,chip)20000 pcs/h.
2) Only capacitance or resistance or LED lamp mounting speed is 26000pcs/h.
4. 8pcs high-speed cameras, 2pcs high-definition cameras -- to meet the visual recognition needs of various components.
1) The high-speed camera can meet the visual recognition of components with diameter less than 10 mm, including resistance,capacitance, lamp bead, transistors, diodes, etc
2) High definition camera can meet the visual recognition of components with diameter less than 35mm, mainly including chips, pins, modules, etc
5.Resistance and capacitance above 0201, 0.3mm pins chip.
1) Use electric feeder to meet the mounting requirements of 0201 components.
2) High definition camera with precise vision can meet the chip mounting requirements of QPF, BGA, QFP, etc.
Vision System
The HW-series vision pick and place systems is easy to programming for all operators, Intelligent and fast to operation
Feeders
Yamaha Pneumatic feeder and Electricial feeder were adopted, sizes include 8mm, 12mm, 16mm, 24 mm, 32mm and 44mm.
Q: How is the training?
A: After buying our machines, your engineers can go to our company or it is so easy to operate. We have English user manual and guide video to teach you how to use the machine. The user manual will come with the machine together.
