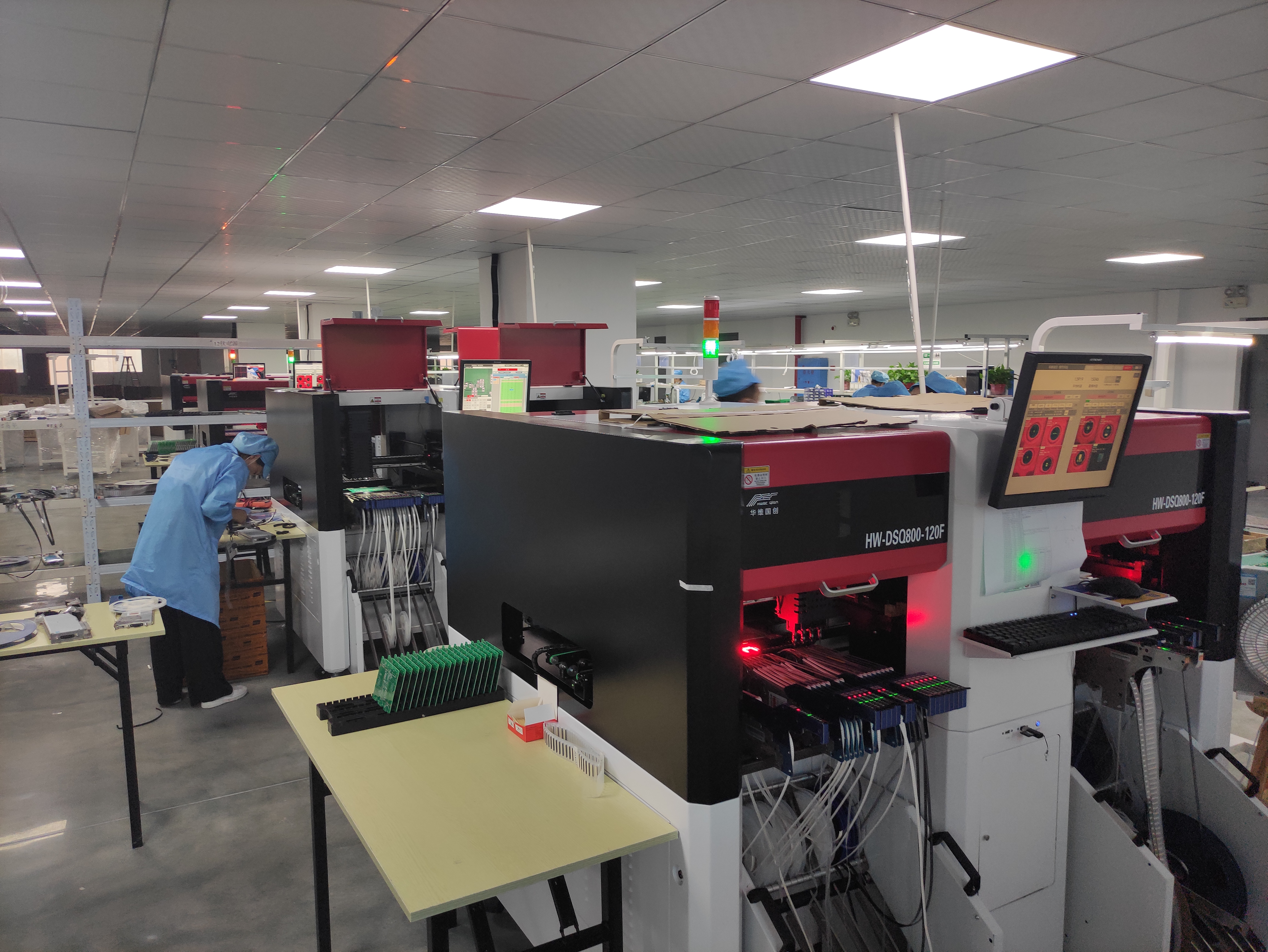

8 Nozzles SMT Pick And Place Machine For PCB Assembly LED Production Line

Name: 8 Nozzles SMT Pick And Place Machine For PCB Assembly LED Production Line
Brand: HWGC
Price: 24500 USD

Brand Name : HWGC

Model Number : HW-DSQ800-120F

Place of Origin : CHINA

MOQ : 1

Price : 24500-24800$

Payment Terms : T/T

Delivery Time : 8 work day

MAX circuit board area : 340*560mm

Vision on : 20000pcs/h

Vision off : 26000pcs/h

Warranty : 1 year

Number of head : 8

Number of feeder : 120

Software : English

Number of camera : 11

Contact Now

8 Nozzles Advantage SMT Pick and Place Machine For PCB Assembly and LED Production Line

Import the .CSV file exported from PCB files, generate project coordinates through four corner coordinate positioning, and automatic-ally generate mark points. Through the packaging library, the layout of material station and nozzle can be generated intelligently, and the picking parameters and mounting parameters can be generated at the same time, greatly improving programming speed.


Placement rates	26000CPH
Accuracy	± .001” (0.02mm)
Voltage	220AC
Weight	1000kg
Warranty	1 year
Suppport	Video Support
UI	The best GUI (graphical user interface) in its class using Windows®-based software allows programming in minutes
Max no. of Feeders (8mm tape)	120 pcs
Max Board Size	380mmX400mm
Smallest Component Capability	0201
Vision System	HWGC Vision
Vibratory Feeders	Loose, tube, stick (frequency & amplitude control)

The HW vision System assist allows accurate placement of 0201, BGA, QFN, QFP,LED and a wide range of virtually all SMT components.

Vision System

The HW-series vision pick and place systems is easy to programming for all operators, Intelligent and fast to operation

Products Description

Specification
Number of Placement Heads	8(high-accuracy)
Number of iC Trays	96
Number of Feeders	120(subject to 8mm feeder)
Positioning Accuracy	0.01mm
Repeated Mounting Accuracy	0.02mm
Range of Mounting Speed	20000-26000Pcs/h
Applicable Components	resistor.capacitor.chip.lamp bead etc.
Supported Maximum Area of PCB	340*560mm
Feeders	NXT electric feeder,vibrating feeder, IC tray etc
Recognition Devices	mark camera x2,fast recognition camera x8. high-precision camera x1
Maximum Height of Applicable Components	≤20mm
Recognition Methods	simultaneous recognition and picking with eight heads
PCB Convey Mode	three-stage entry automatic connection from left to right, automatic PCB positioning
Mark Positioning	manual/automatic
Programming Method	automatic programming after manually importing files of PCB coordinates
Control System	HuaweiGuochuang 2021 control system
Maximum Step Length of XY Axis	423mm734mm(left)423mm734mm(right)
Tracks of XY Axis	four linear motion quide + four ground ball screw
Motion Mode of XY Axis	intelligent linkage of acceleration and deceleration of curve and line, integrated linear interpolation algorithm
Control Computer	industrial control computer with intel high-performance processor
Adjusting Method of Tracks	electric
Range of Nozzle Buffer	4.5mm
Maximum Step Length of Z Axis	50mm
Range of Angle for Components	士180°
Motor	Panasonic AC Servo Motor MINAS A6 series
Driver	Panasonic high-speed DSP driver
Air Supply Requirements	oil water filter,> 60L dust filter and air pressure stabilizer etc
Vacuum Supply of Nozzle	Japanese CKD vacuum generator integrating the high-speed vacuum burst function
Range of Air Supply Pressure	0.5-0.6mp
OS	independent research and development SMT intelligent OS based on Windows
Vision Display	17-inch industrial control display
Cable	German lgus durable flexible cable(10 million times)
Power Supply	220V 50/60Hz
Average Power	1500W
Machine Dimensions	174013601440mm
Weight	1100Kg

8 Nozzles SMT Pick And Place Machine For PCB Assembly LED Production Line

FAQ

Q: How is the training?
 A: After buying our machines, your engineers can go to our company or it is so easy to operate. We have English user manual and guide video to teach you how to use the machine. The user manual will come with the machine together.

 Q:Is it hard to use these machines?
 A: No, not hard at all For our previous clients, at most 2 days is enough to learn to operate the machines.

 Q:Does your machines have quality certificate?
 A: All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own paten.

 Q:The Warranty of the machine?
 A: One year, then the parts will be free for the buyer in the warranty. If there is any doubt in the process of operating the
 machine, pls feel free contact us. We will help you in time.

 Q:English version for these machines?
 A: Yes, and we will reqularly update the software for customers.
